LemonScore Controller
CHF 2'600- Preconfigured system: switch on and go
- 1'000-nit touchscreen, readable in direct sunlight
- Touch operation directly on the device
For fixed installations with a speaker booth
Complete package with installation partner
Buy an LED scoreboard: the complete package for your football pitch
LED wall, installation, control unit and LemonScore software from a single source. Pick size and pixel pitch in the configurator, see the guide price in CHF straight away and request a written quote. Installed by our installation partner, operated with LemonScore.
Delivery and installation in Switzerland and Liechtenstein
FC Seuzach
5 x 3 m FABULUX wall, installed by our partner, May 2026
Guide price
CHF 2'000 to 2'500 per m² all-in at 6.67 mm
Quote
In writing, usually within 2 working days
What the complete package includes
One point of contact, one invoice: LemonScore coordinates the project, our installation partner delivers and installs the LED wall, we set up the software.
LED wall with installation
FABULUX modules in your chosen size and pixel pitch, frame, cabling and standard installation by our installation partner. Outdoor modules with 4'500 to 6'500 nit and an IP65 front. Statics, foundation and permits are clarified by the installation partner at the site visit.
Novastar LED processor
The processor connects the wall to the control unit. LemonScore drives Novastar directly, for brightness for example. For live streams we recommend a 3'840 Hz refresh rate.
LemonScore Controller or Case
Preconfigured control unit with a 1'000-nit touchscreen: fixed in the speaker booth or mobile in a hardshell case. Or use your own Windows or Mac computer.
Software setup and layout
We set up LemonScore to match the resolution of your wall: club colours, logo, score, match clock and animations are ready on the day of commissioning.
Sponsor setup and training
Sponsor logos, rotation and half-time playlist are configured. Your volunteers learn the controls in a training session so the first match day runs without surprises.
One Swiss invoice, warranty and support
Hardware, installation and setup on a single invoice in CHF. Warranty via the installation partner, software support from LemonScore.
Configurator: choose size, pixel pitch and control unit
Three decisions, one guide price. The calculation is based on CHF 2'000 to 2'500 per m² at 6.67 mm; other pixel pitches are scaled accordingly. Your configuration goes straight into the quote request.
LED wall size
Rule of thumb: the wall should be at least 3 % as wide as the maximum spectator distance. Most club projects end up at 8 to 10 m².
Custom dimensions
m
1 m8 m
m
0.5 m5 m

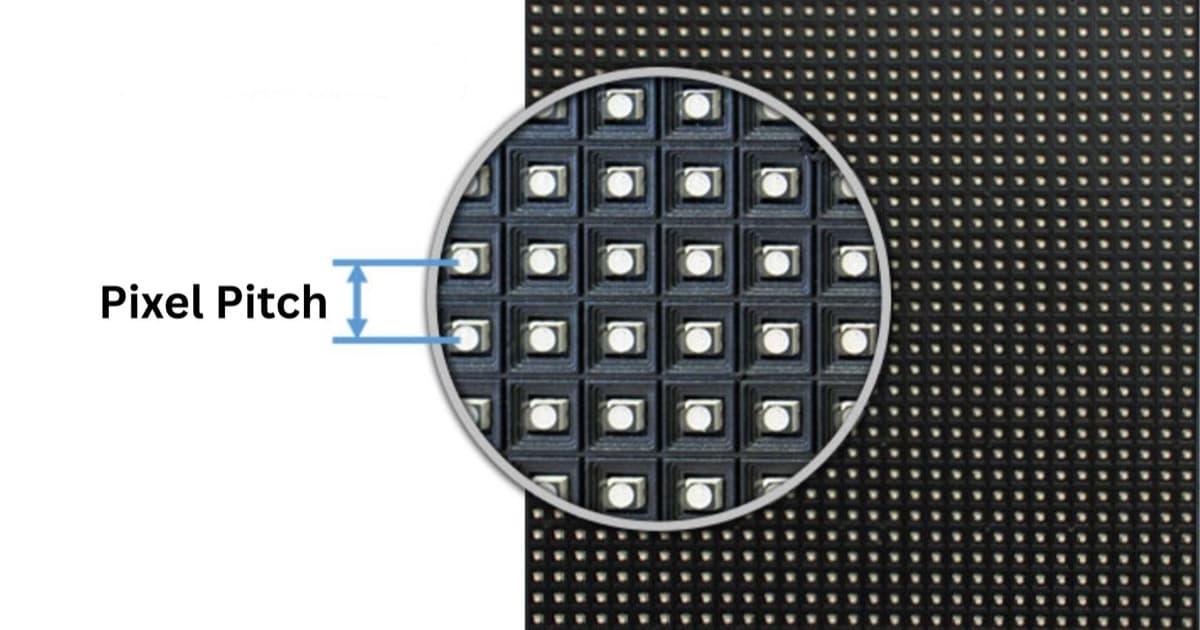

Pixel pitch
The smaller the pitch, the sharper the picture up close and the higher the price. 6.67 mm is the standard on football pitches.
Control unit
How will you operate the scoreboard on match day?
3 x 2 m, 6.67 mm, LemonScore Controller
CHF 14'600–17'600
3 x 2 mPerson, 1.8 m
Your guide price
CHF 14'600–17'600
Guide price in CHF, non-binding.
- LED wall incl. installation
- CHF 12'000–15'000
- Control unit
- CHF 2'600
Area
6 m²
Resolution
450 x 300 pixels
Minimum viewing distance
7 m
Maximum spectator distance
100 m
What is not included
Steelwork, foundation, permits and statics are not included and are clarified by the installation partner at the site visit.
The LemonScore licence is charged separately. See software pricing
Control unit: Controller, Case or your own computer
All three options run the same LemonScore software. The difference is where you use it and how quickly it is set up on match day.

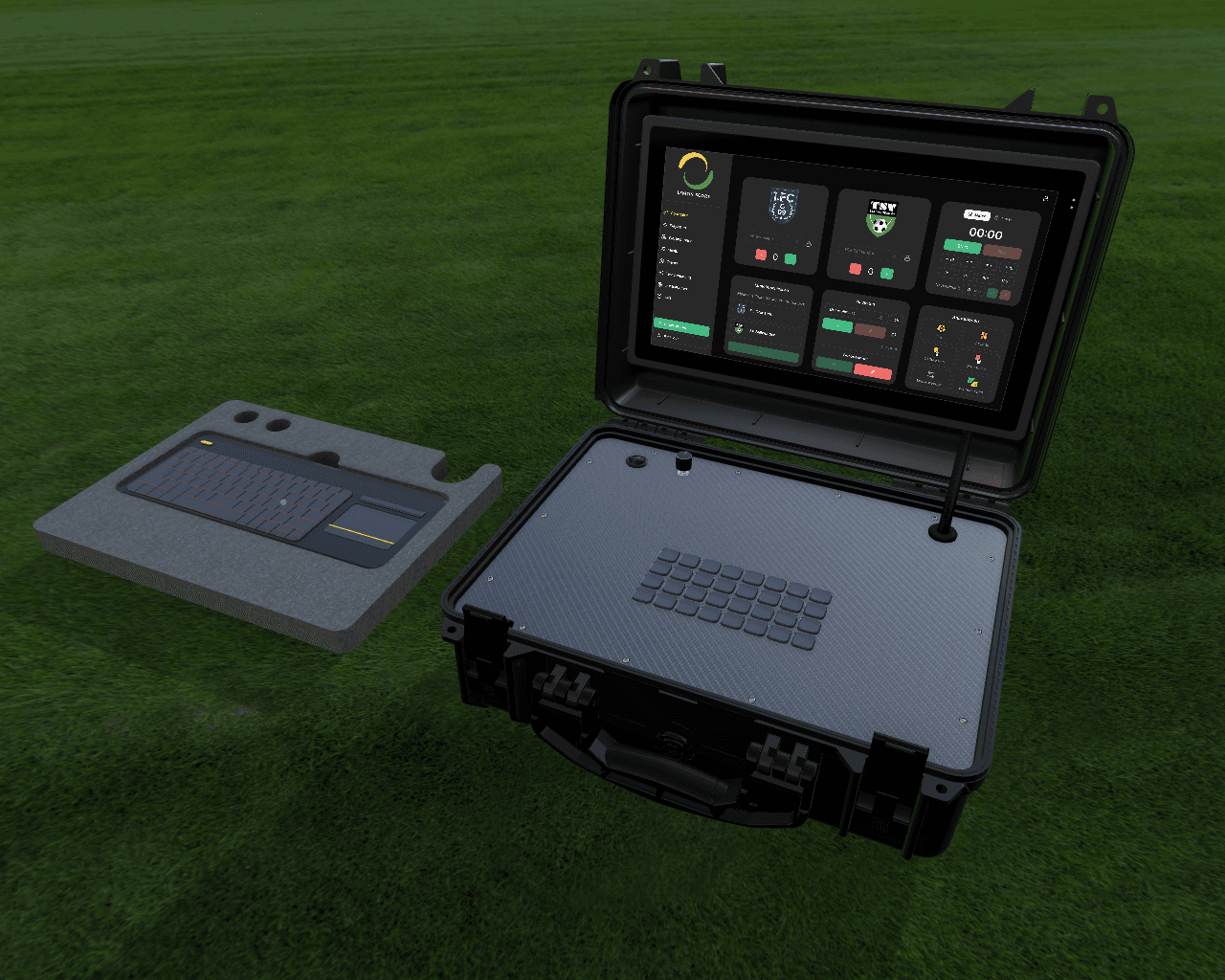

LemonScore Controller Case
CHF 3'850- Same 1'000-nit touchscreen plus integrated Stream Deck
- Rugged hardshell case for transport and storage
- Set up in under a minute
For mobile setups and grounds without a fixed booth
Own computer
CHF 0- Windows 10 or later, macOS 11 or later
- Runs on any current laptop or desktop
- No extra device, install LemonScore directly
For clubs that already have a laptop
Reference: LED wall at FC Seuzach
5 x 3 m FABULUX wall with 6.67 mm pixel pitch, delivered and installed by our installation partner, operated with LemonScore. Since May 2026 it has shown score, match clock and sponsor advertising at every home match.
FC Seuzach
Installation with partner, May 2026
Read the installation reportHow your project works
Written quote
Usually within 2 working days of your request you receive a written quote based on your configuration, broken down into hardware, installation and setup.
Site visit with installation partner
Our installation partner checks spectator distance, mounting, power supply and permits. Steelwork, foundation and statics are clarified here and quoted separately.
Installation and commissioning
The installation partner delivers and installs the LED wall, fits the LED processor and commissions the system.
LemonScore setup
Layout in your club colours, sponsor logos and playlists, training for your volunteers. The system is ready for the first home match.
Funding: Swisslos Sportfonds and sponsors
Very few clubs pay for the LED wall out of the club account. In practice two sources cover most of the investment.
Swisslos Sportfonds
The cantonal sports funds often cover around 40 % of the material costs. Important: the application must be submitted before construction starts. Our quote serves as the attachment.
Read the Swisslos Sportfonds guideSponsor slots
An advertising slot on the scoreboard brings in CHF 600 to 1'200 per season in lower amateur leagues. The sponsor calculator shows how many seasons it takes with your figures.
Open the sponsor calculatorA quote you can build on
Sports fund applications and committee decisions need solid figures. Our written quote lists hardware, installation and setup separately.
Frequently asked questions about buying an LED scoreboard
Ready for your first quote?
Configure your LED wall in two minutes and request a written quote. If you would rather talk first, describe your situation via the contact form.
The LemonScore licence is charged separately. See software pricing
